EUROLINE
EL 80 S

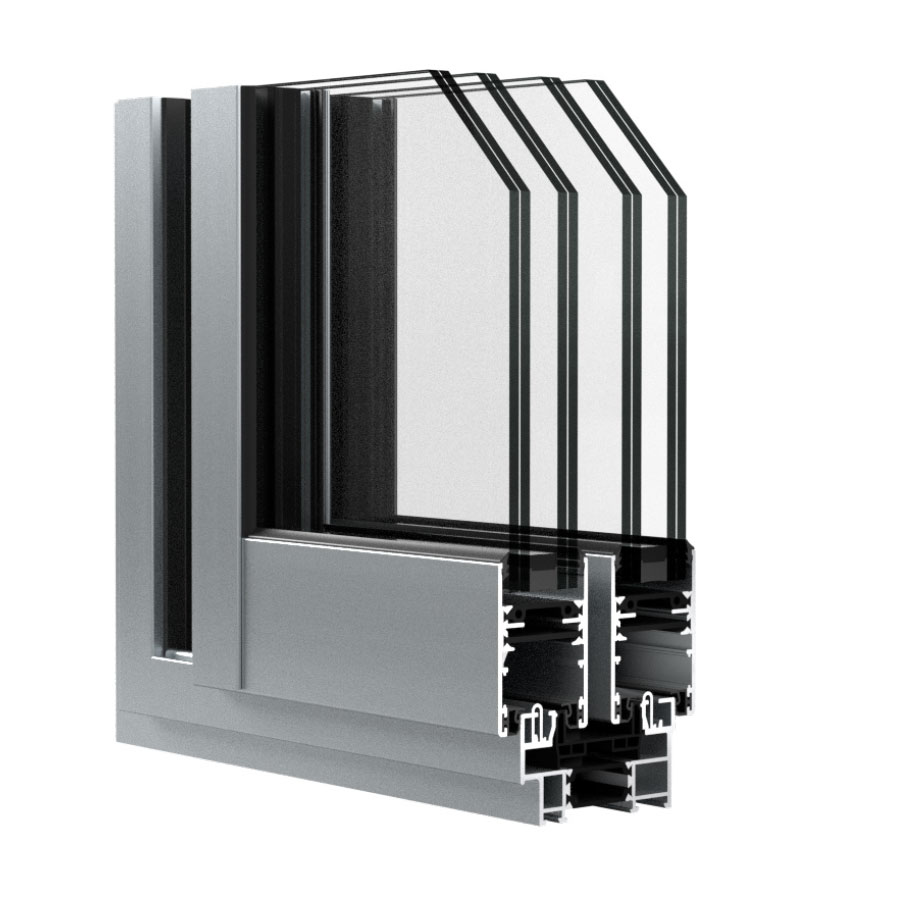

EUROLINE EL 80 S

Slender design for great results

Innovative thermally insulated aluminium sliding frame series that combines ever-increasing demands for maximising light-emitting surfaces with profiles of limited dimensions. State-of-the-art performance results are enabled by the continuous technological updating of Gastaldello Sistemi and the technical studies of the dedicated research and development team.

---

Specific characteristics

» New glass support system for supporting the weight of the glass directly on rails, allowing high-performance layered applications.
» Updated accessories, new seals, guides with stainless steel option, polyamide bars with increased efficiency to obtain significant thermal insulation values.
» Shutters with a thickness of 43 mm, with statically reinforced central mullions with 35 mm view.

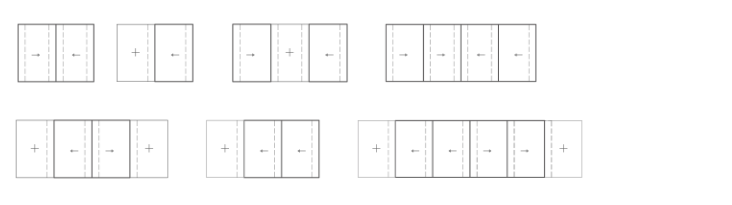

» Perimeter frame with reduced dimensions that can be added in different configurations to the shutter series.
» Precautionary internal water collection tank.
» Capacity for 200 kg door.

TECHNICAL FEATURES	STANDARD
Superficie in vista anta + telaio	105 mm (opzioni da 65-72-132)
Dimensione visibile telaio	45 mm
Dimensione visibile anta	68 mm
Vetraggio anta	da 26 mm a 37 mm
Binari	da 2 a 3
