EUROLINE
EL 180 SM VIEW

EUROLINE EL 180 SM VIEW

Beyond the horizon

Innovative sliding door and window frame concept, where aluminium and glass blend in harmony. The visual impact of metal material is very different from traditional door and window frame material and determines the birth of a new concept in frames whose movement is virtually unnoticeable. All-glass views play a prominent role in the landscape, minimising the perception of the internal-external relationship, dematerialising transparent closures to make architecture look more spectacular.

---

Specific characteristics

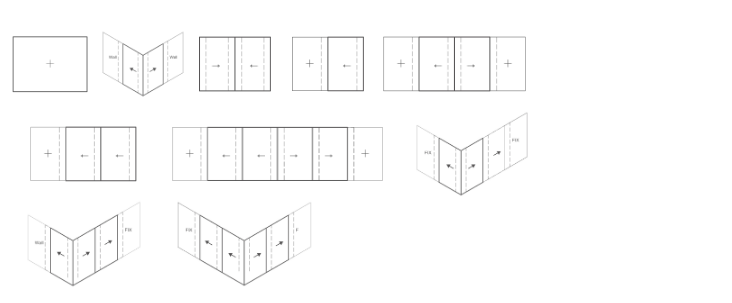

» Possibility of concealed openings in masonry as well as various combinations of fixed and open glass panels.
» Motors that are visible of hidden, with push button or remote control.
» Possibility of create glass angles without fixed mullions.
» Extra-clear glass and large glass panels with high performance levels.

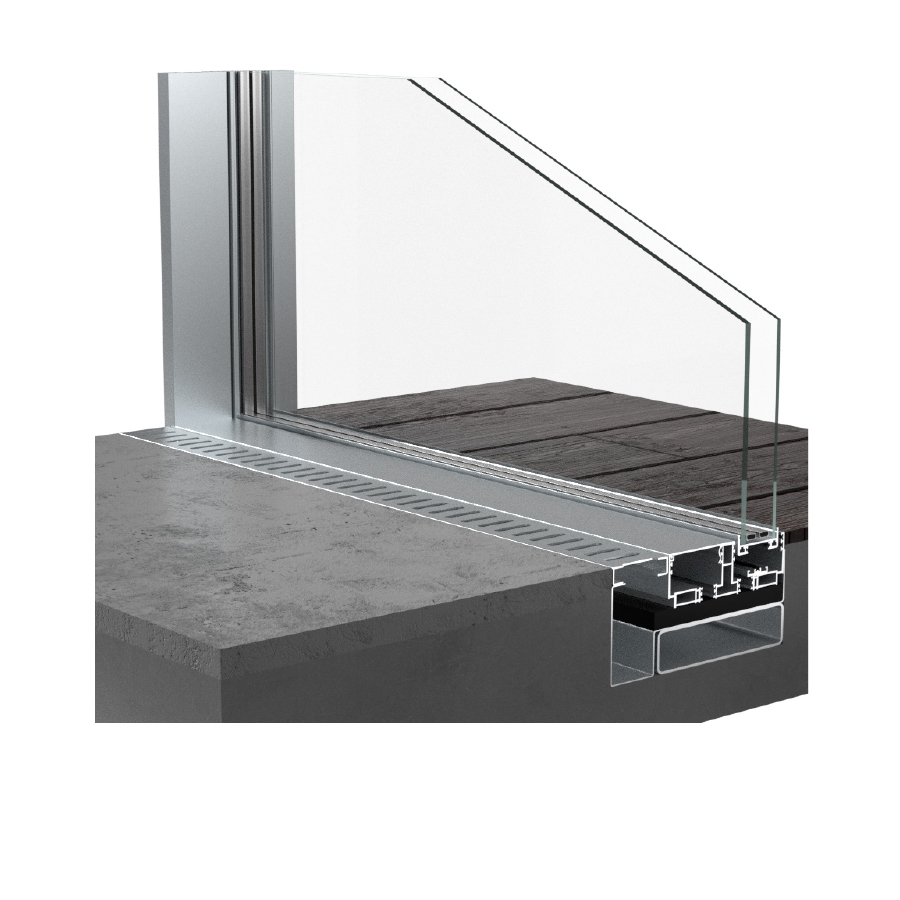

» Optional linear flush-to-the-floor door, with elements for elevation above rails.
» Capacity for 500 kg door.

TECHNICAL FEATURES	STANDARD
Superficie in vista anta+ telaio	da 0 mm a 33 mm
Dimensione visibile telaio	0 mm
Dimensione visibile anta	23 mm
Vetraggio anta	54 mm
Binari	da 1 a 3
