EUROLINE
EL 170 S

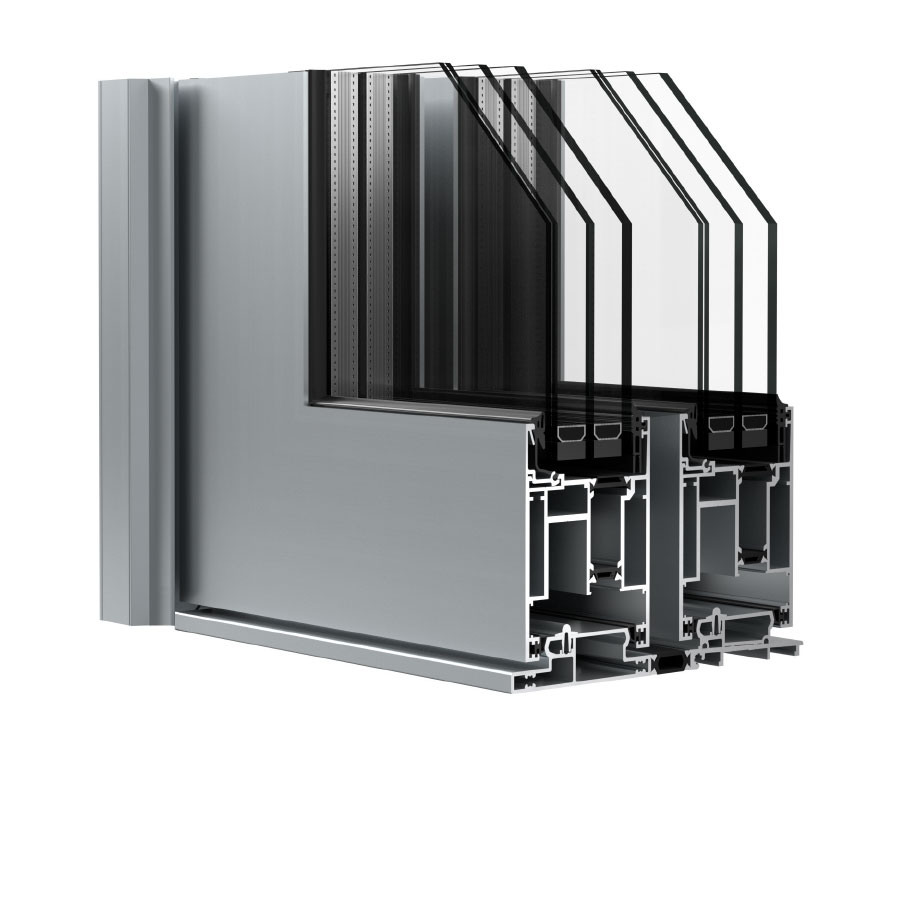

EUROLINE EL 170 S

Tackle the elements

Deluxe range series. Ideal for maximum response to thermal, acoustic and static stress. A key element for achieving a high energy class, thanks to the possibility of housing more than the average number of layers of double glazing. Large non-standard glass panels can be obtained with reinforced profiles that are either visible or hidden in the profiles of the doors.

---

Specific characteristics

» Lift and slide double thermal break solutions for obtaining a high energy class.
» Performance can be optimised through the use of thermal and acoustic sponge and with seals that incorporate brushes.
» A range of articulated accessories are available to guarantee smooth operation of doors up to 400 kg.
» A preferred solution for housing double glazing up to thickness of 53mm.
» Doorway lowered on request for disabled access.
» Available with a glass panel solution integrated in a double thermal break frame.
» Burglar-proof hardware for lift-and-slide version.

TECHNICAL FEATURES	STANDARD
Superficie in vista anta + telaio	113,5 mm / 146,5 mm
Dimensione visibile telaio	22 mm a 55 mm
Dimensione visibile anta	100 mm
Vetraggio anta	23 mm a 53 mm
Binari	da 1 a 2
