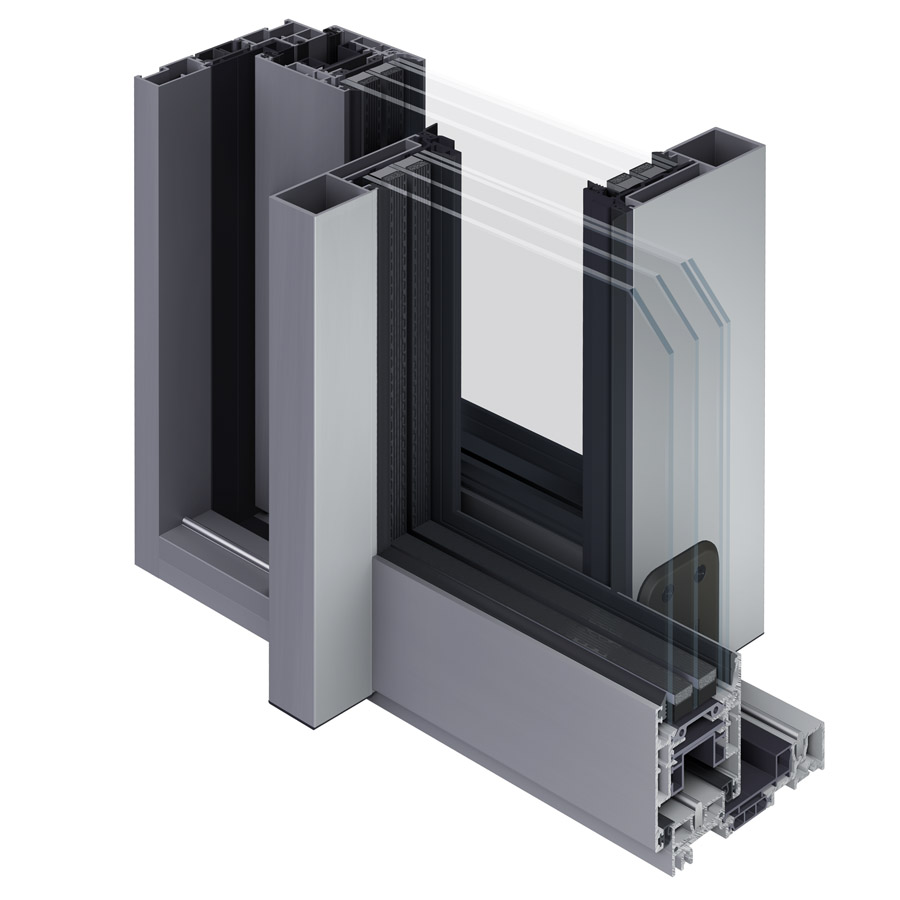

EUROLINE EL 145 SE

EUROLINE EL 145 SE

The essence of the sliding frame

Our EL145SE system enables to manufacture large sliding and lift-and-sliding glass windows, with mobile leaf sizes up to 2,000 mm in width x 3,000 mm in height and with weights up to 400 kg.

---

The system, to maximize the adaptability of the window and door frame to the building and to architectural requirements, has been equipped with a solution with a mobile leaf + a fixed leaf positioned outside the frame. This unique layout, in addition to offering practicality and economy of scale, improves general thermal insulation performance.

---

EL145SE can be used in both residential and non-residential renovations, offering a wide range of possible construction solutions. Performance tests that have been carried out determine and allow EL145SE to properly meet today’s performance parameters laid down by law which aim at focusing more and more attention on energy savings.

---

EL145SE has not overlooked such an important factor as security. Stringent burglar-proof tests are being carried out with the aim of achieving the performances stipulated by European EN1637-30 standards. In its Essentiality EL145SE could also not ignore the accessibility aspect. The lowered thresholds in the system easily accommodate persons who have mobility problems

TECHNICAL FEATURES	STANDARD
Superficie in vista anta + telaio	da 101 mm a 117,5 mm
Dimensione visibile telaio	da 21 mm a 50 mm
Dimensione visibile anta	75 mm
Vetraggio anta	49 mm
Binari	da 2 a 3
