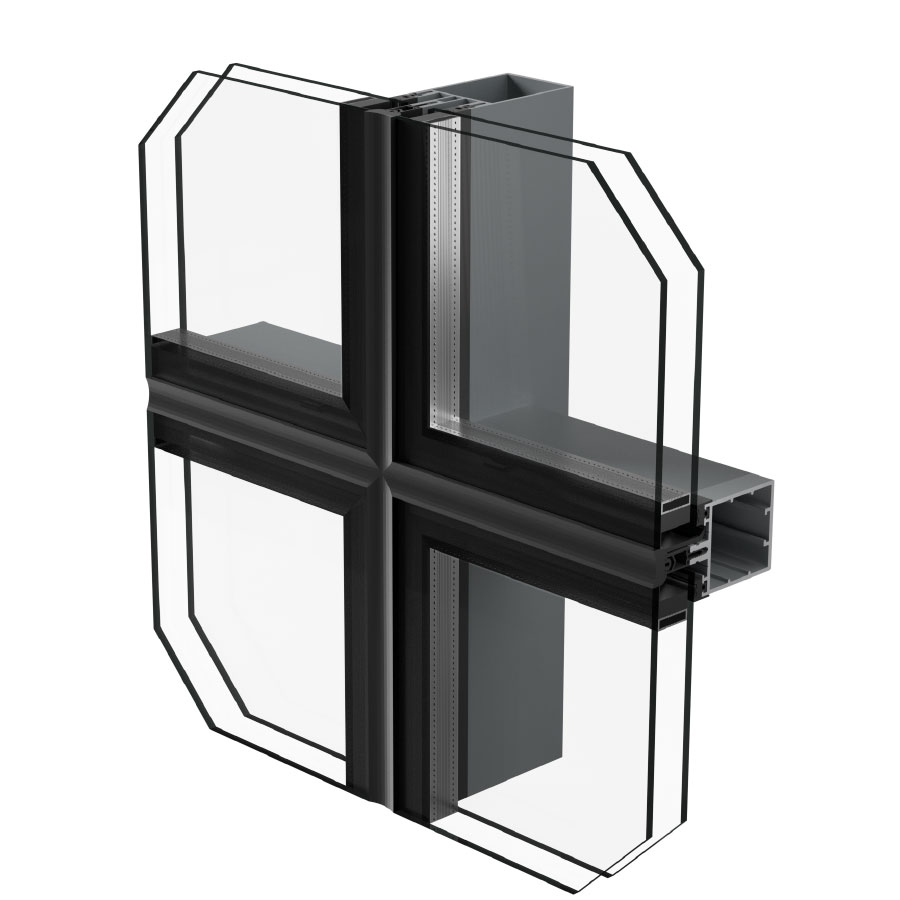

EUROLINE EL 50FG

Contemporary lines

Expressive freedom and clean lines for architecture with a contemporary style. Providing a mechanical fixing system. This range helps to optimise site resources, combining functionality with unique results.



Specific characteristics

» All-glass structural façade for the maximum planarity of outdoor surfaces.
» Possibility of positioning at ± 5° angles to the facade.
» Installazione semplificata con un solo accessorio e sigillatura esterna waterproof continua di chiusura.
» Simplified installation with a single accessory and continuous external waterproof sealing for closure.
» Mixed solutions with unidirectional cover-pressers for accentuating vertical or horizontal elements.
» New standard triple glass installation measuring up to 60 mm.

TECHNICAL FEATURES EL50FG
Dimensione visibile (montante traverso) 50 mm
Vetraggio da 28,76 mm a 56,76 mm
EL50FG

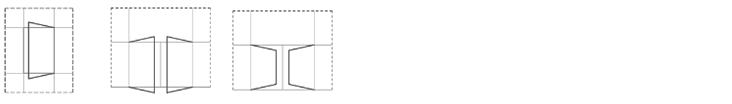

Openings
EL50FG

air permeability Air permeability

water tightness Water tightness

wind strenght Wind strenght

sound performance Sound performance

thermal performance Thermal performance

burglar-proof performance Burglar-proof performance

ratto sabine
