Infinite solutions in a single product. Its flexibility of use makes it one of the best selling Gastaldello Sistemi casement windows. Chosen to bring light to several projects all over the world, it meets functional and architectural needs.
» Improvement gaskets provided for several components made of EPDM coextruded with foam material.
» Industrial aesthetics option of the “steel” shaped profiles, appreciated for example in the replacement of steel frames.
» Certified closing kit for resistance to break-ins.
» Polyamide with high thermal insulation performance to meet the increasingly stringent performance values required by the market.
» Possibility to mount invisible hardware for an ultra linear look.
Linear design and minimalist look for windows with certified anti-burglary and polyamide closure kit with high thermal insulation performance.
CLASS 4
E1200
A4
High
38db

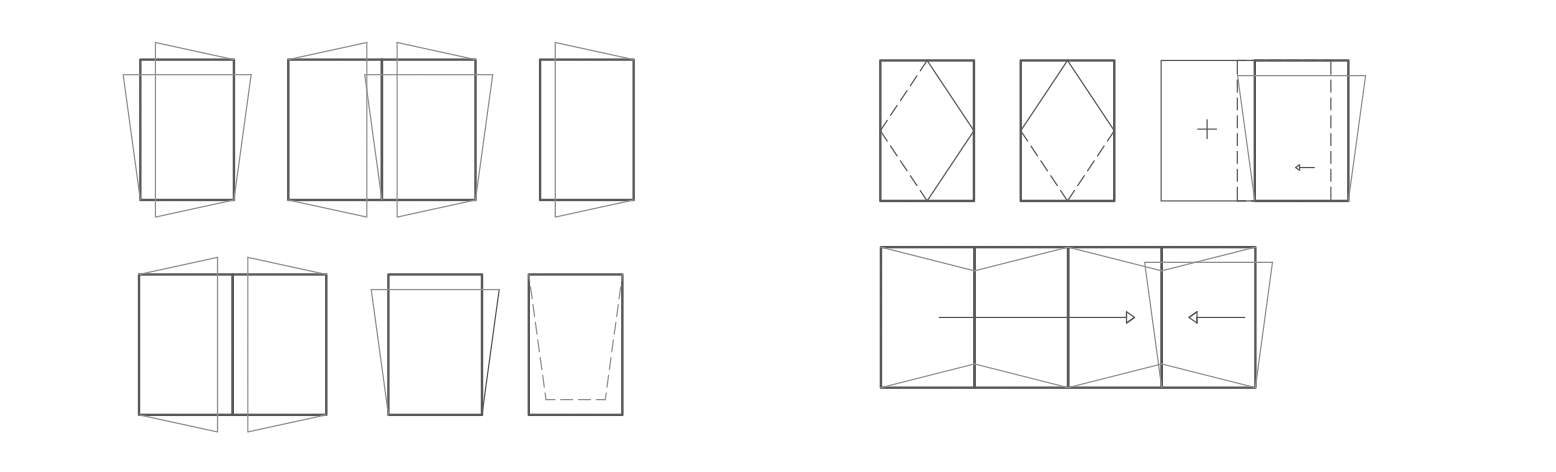

The system allows to obtain kind of openings.

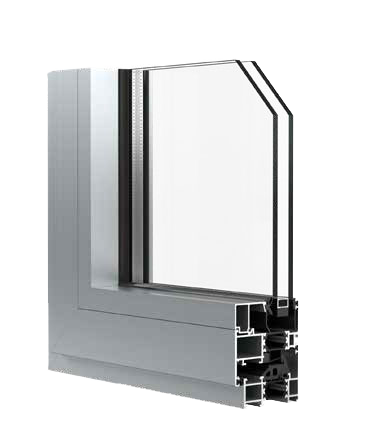

TECHNICAL FEATURES | STANDARD | SHAPED | ROUNDED | STEEL |
---|---|---|---|---|
Exposed surface door + frame | 90/110/136 mm | 90/110/136 mm | 90/110/136 mm | 87 mm |
Visible frame size | 51/61/69 mm | 51/61/69 mm | 51/61/69 mm | 61 mm |
Door visible size | 34/44/62 mm | 34/44/62 mm | 34/44/62 mm | 18 mm |
Door glazing from | from 14 mm to 58 mm | from 6 mm to 48 mm | from 6 mm to 48 mm | from 25 mm to 39 mm |
