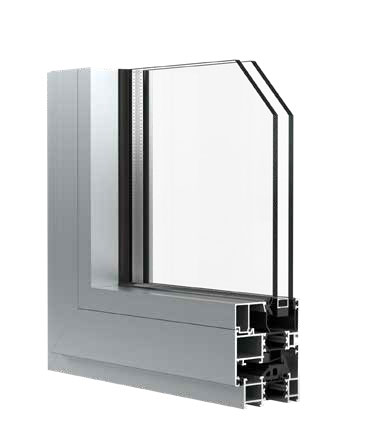

EUROLINE 65 LL

MOST REQUIRED

Infinite solutions in a single product. Its flexibility of use makes it one of the best selling Gastaldello Sistemi casement windows.
Chosen to bring light to several projects all over the world, it meets functional and architectural needs.

EUROLINE 65 LL

SPECIFIC FEATURES

  • Improvement gaskets provided for several components made of EPDM coextruded with foam material.
  • Industrial aesthetics option of the “steel” shaped profiles, appreciated for example in the replacement of steel frames.
  • Certified closing kit for resistance to break-ins.
  • Polyamide with high thermal insulation performance to meet the increasingly stringent performance values ​​required by the market.
  • Possibility to mount invisible hardware for an ultra linear look.

Contact us

Request information

Flexible and versatile, suitable for solving any design requirement. 65LL is the ideal window for every type of project with various profile and customized solutions, combining aesthetics and functionality.

Linear design and minimalist look for windows with certified anti-burglary and polyamide closure kit with high thermal insulation performance.

More information

TESTS AND REFERENCE STANDARDS

Sealing performance

Air permeability

CLASS 4

Water tightness

E1200

Wind resistance

C4

Thermal transmittance

High

Soundproofing

48db

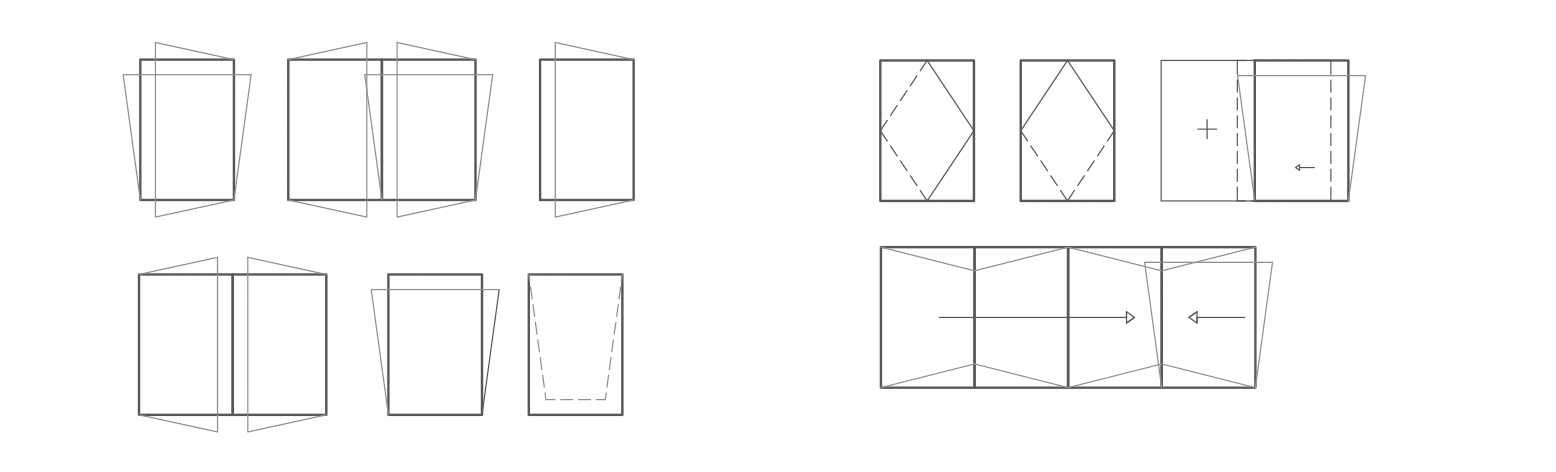

OPENINGS

The system allows to obtain kind of openings..

kind of openings

DIMENSIONS

TECHNICAL FEATURES STANDARD SHAPED ROUNDED STEEL
Exposed surface door + frame 90/110/136 mm 90/110/136 mm 90/110/136 mm 87 mm
Visible frame size 51/61/69 mm 51/61/69 mm 51/61/69 mm 61 mm
Door visible size 34/44/62 mm 34/44/62 mm 34/44/62 mm 18 mm
Door glazing from da 14 mm a 58 mm da 6 mm a 48 mm da 6 mm a 48 mm da 25 mm a 39 mm
EUROLINE 65LL FINESTRE STANDARD
EUROLINE 65LL STANDARD
EUROLINE 65LL FINESTRE SAGOMATO
EUROLINE 65LL SHAPED
EUROLINE 65LL FINESTRE ARROTONDATO
EUROLINE 65LL ROUNDED
EUROLINE 65LL FINESTRE STEEL
EUROLINE 65LL STEEL
