EUROline VIEW
EL 180 SM

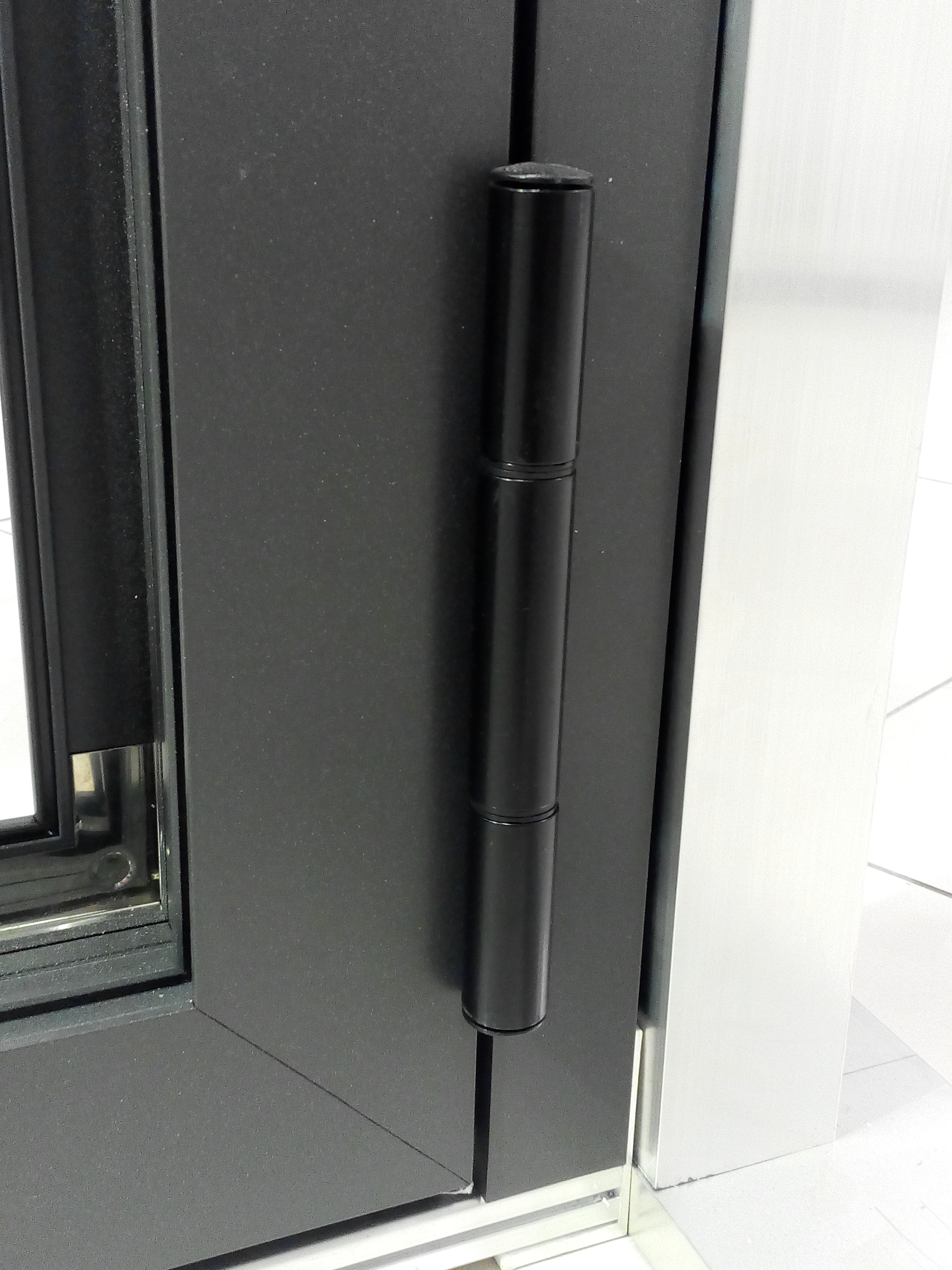

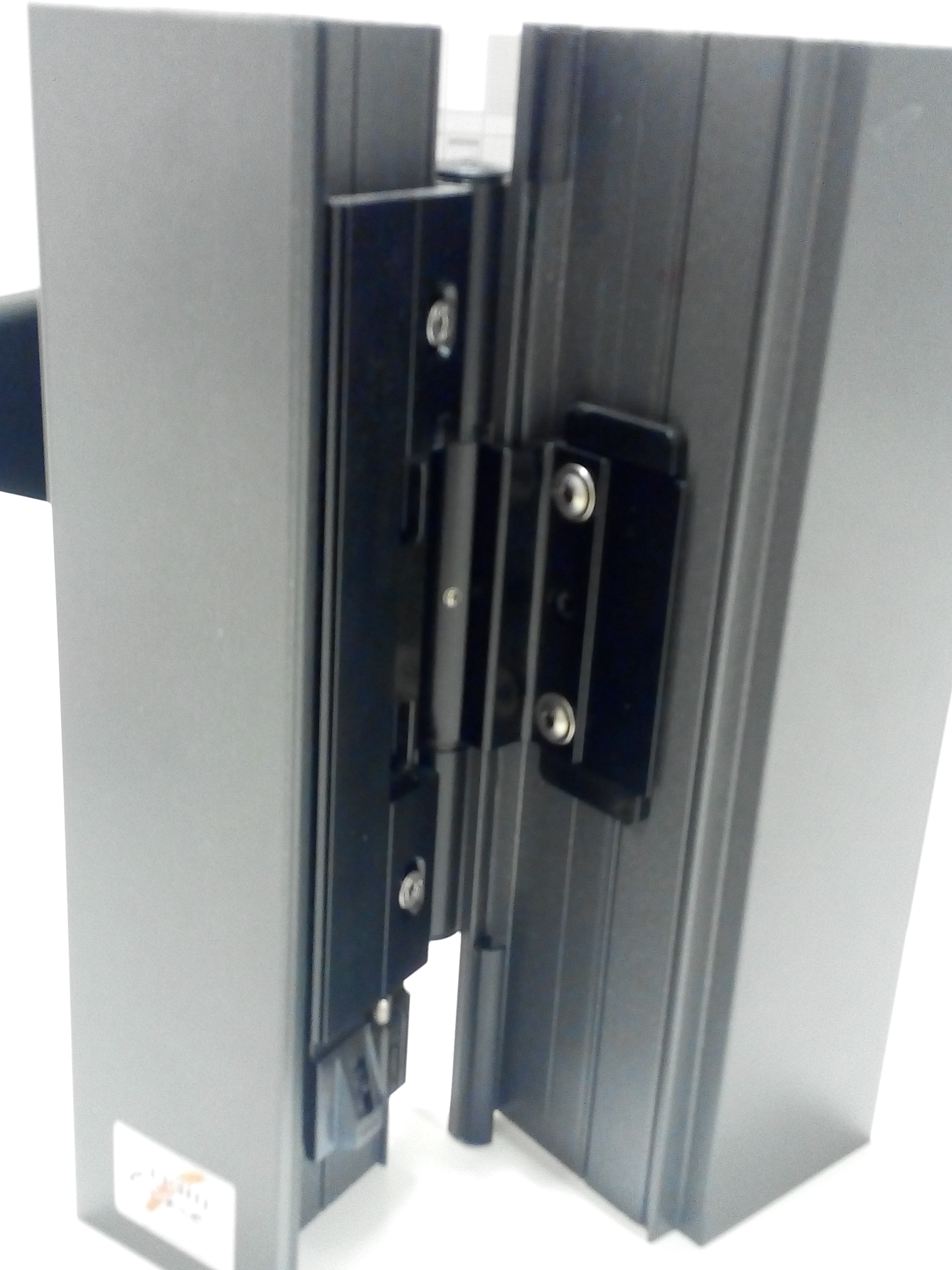

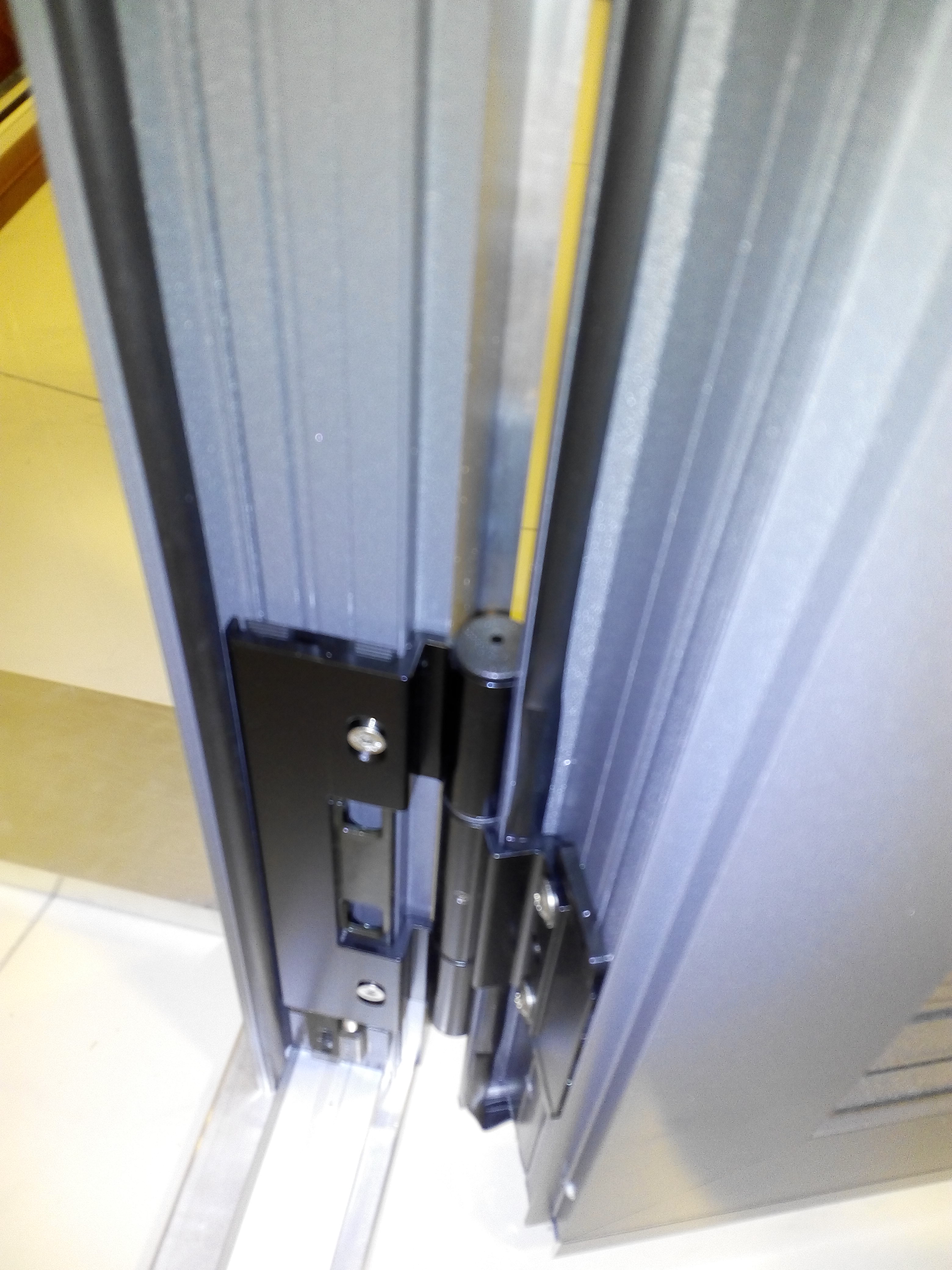

Among the wide choice of building hardware, Gastaldello Sistemi offers the opportunity to use threadlike three-wing hinges for inward and outward opening doors for EUROline60, EUROline 65P, EUROline 72P, EUROline 76E, EUROline 76P series.

Heavy use Hinges threadlike with capacities up to 396 lbs / 180Kg, with the possibility of adjustment on three axes:
» Side adjustment ± 1.5 mm / 0,059 inch
» Height adjustment ± 4 mm / 0,157 inch

n°2 hinges normal use,
90-120 Kg H / L Min. 1.85 and L Max.1200mm 198-264 lbs H / L Min. 1.85 and L Max. 47,244 inch
Max.90 kg H / L Min. 1.4 and L Max.1200mm Max. 198 lbs H / L Min. 1.4 and L Max. 47,244 inch
n°3 hinges Heavy use with closers,
120-150 Kg H / L Min. 1.6 and L Max.1200mm 264-330 lbs H / L Min. 1.6 and L Max. 47,244 inch
90-120 Kg H / L Min. 1.6 and L 1200-1400mm 198-264 lbs H / L Min. 1.6 and L 47,244 - 55,118 inch
Max.90 kg H / L Min. 1.4 and L 1200-1400mm Max. 198 lbs H / L Min. 1.4 and L 47,244 - 55,118 inch
n°4 hinges Heavy use with closers,
150-180 Kg H / L Min. 1.9 and L Max.1200mm 330-396 lbs H / L Min. 1.9 and L Max. 47,244 inch
120-150 Kg H / L Min. 1.6 and L 1200-1400mm 264-330 lbs H / L Min. 1.6 and L 47,244 - 55,118 inch
Available in colors with surface finish
black RAL9005, white RAL9010, oxidized silver and also with customer chosen finish.
