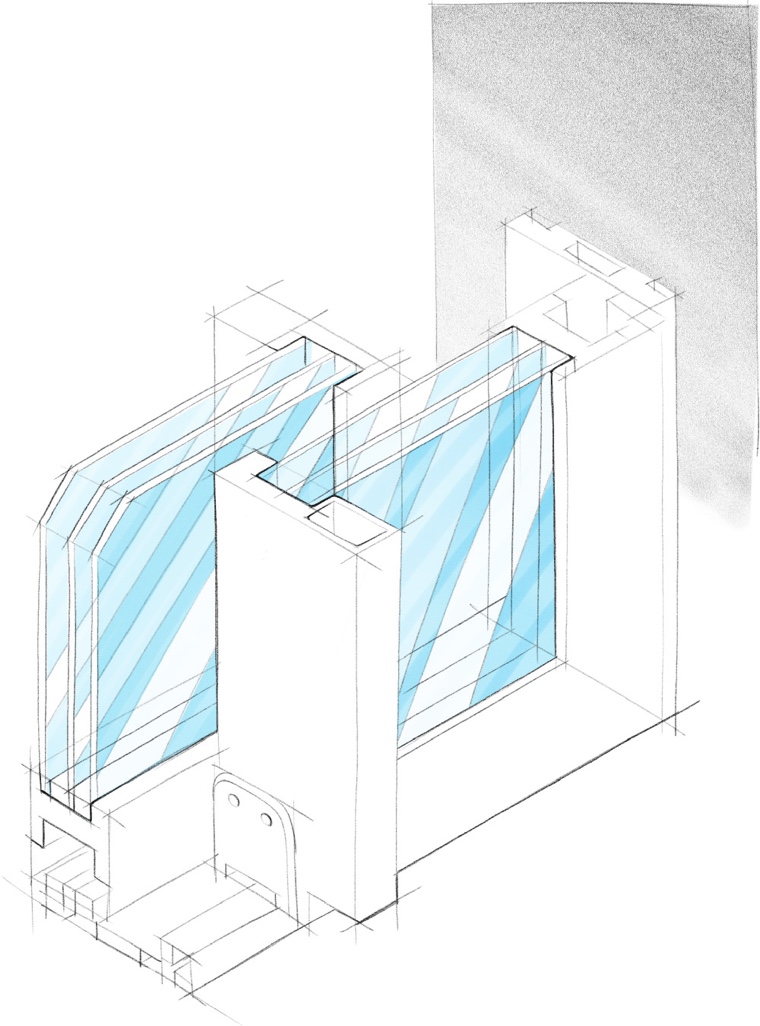

The EL145SE system allows you to create large sliding and sliding glass doors with a mobile leaf size up to L 2,000 X H 3,000 mm and with a weight of up to 400 kg.
To improve the adaptability of the window to the building and architectural needs, the system has been equipped with a mobile door + fixed door solution positioned outside the frame. This singular typology, other than offering comfort and economy of scale, allows you to improve general thermal insulation performance.
EL145SE does not forget an important thing such as safety. Punctual anti-burglary tests are underway with the aim of achieving the performance foreseen by the European standard EN1637-30.
In its essentiality, EL145SE could not left behind the accessibility, the lowered thresholds in the system, easily accommodate everyone.
EL145SE can be used both in case of home renovation and in other types of structural operations because it offers a wide variety of building solutions.
Thanks to the performance tests we made, our solution (EL145SE) can correctly respect all performance criteria that certify the product ability to guarantee energy saving.
The junction in the middle, that is only 35 mm large, helps to minimize the visual impact and to reduce the darkening elements.
Size: L 3.200 x H 2.450 2 ante
CLASS 4
CLASS E750
CLASS C3/B4
Size: L 2.500 x H 2.180 2 ante
Uw = 1,36 W/mqK
whit glass Ug = 0,9W/mqK psi = 0,036
RC2

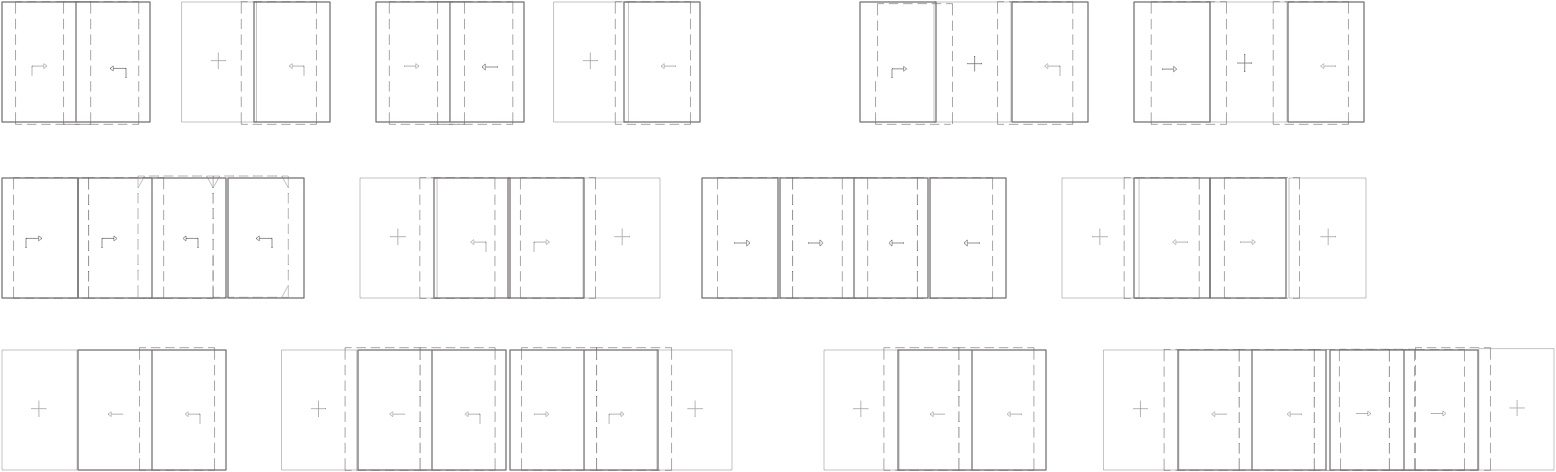

The system allows to realize different configurations combinig sliding windows with fixed windows. configurando parti fisse con parti mobili.
We can also produce wide doors, until L 2.000 e H 3.000 mm, max load 400 kg.
Available in two (2-3-4 sash) or three (3-6 sash) track system.

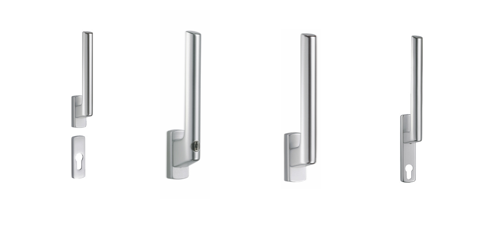

Different types of handles are available. All of them have an elegant design and they can have 2 or 3 locking system.
